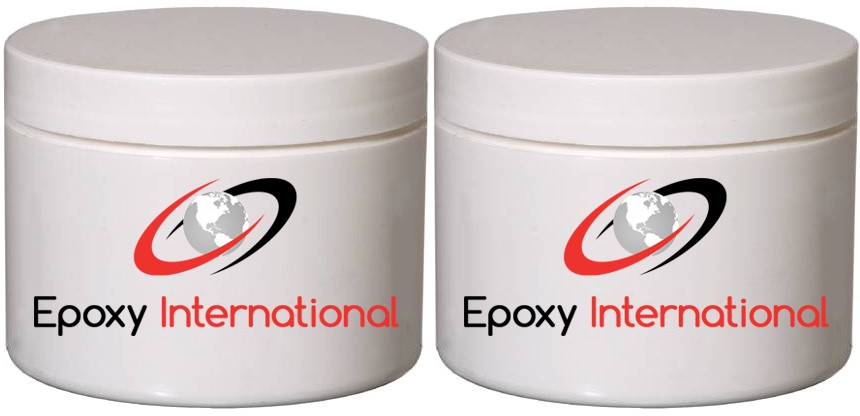

Steel-Bond 23 Steel, Metal, Iron Repair Computer, High Viscosity Strong Bonding Epoxy

$4.99
Shipping:
Calculated at checkout
Quantity:

Product Description

METAL/STEEL REPAIR EPOXY ADHESIVE


PRODUCT DESCRIPTION:

Steel-Bond 23 Steel, Metal, Iron Repair Computer, High Viscosity Strong Bonding Epoxy is a versatile steel metal/epoxy adhesive formulation developed for modern industrial repair, casting and bonding applications where a steel-like or cast iron finish is required.

Steel-Bond 23 Steel, Metal, Iron Repair Computer, High Viscosity Strong Bonding Epoxy is easy-to-use adhesive system contains no solvents and cures fairly rapidly at room temperature to a hard, low shrinkage solid, which bonds readily to steel, aluminum, and other metals, wood, concrete, glass, ceramics and many plastics.

Steel-Bond 23 Steel, Metal, Iron Repair Computer, High Viscosity Strong Bonding Epoxy is tough and durable, resistant to water, mild acids and alkalis, salts and salt solutions, lubricating oils, petroleum solvents, gasoline, jet fuels, alcohol and many other organic and inorganic materials, While it may be attracted to a magnet, it is essentially an electrical insulator which can be readily drilled, cut, sawed and machined with regular metal working tools Typical repair applications: jigs, molds, dies, fixtures, plumbing, automotive, castings, aircraft, ships, marine, salvage.

GENERAL PROPERTIES

Appearance Steel grey
Cure Type Room temperature or Heat Cure
Benefits Casting
Jigs
Molds
Forming dies
Plumbing Repairs
Tool and dies patching
Automotive repairs
Industrial maintenance
Mix Ratio by weight 100:10 / Resin:Hardener
Substrates Most metals, ceramic, glass and plastics
Operating Temperature -60 to 135 C
Typical Applications Modern industrial repair, casting and bonding applications where a steel-like or cast iron finish is required.

UNCURED PROPERTIES:

Viscosity @ 25 C, cps 3,200
Thixotropic Index 1.0
Specific Gravity, mixed 2.34
Reactive solids contents, % 100
Pot Life 30 minutes

CURE SCHEDULE:

4 hours @ 65C
24 hours @ 25C

For masses over 25gm, allow material to gel for 4 hours @ 25C follow by 100C for 5 hours.

CURED PROPERTIES:

Hardness, Shore D 88
Machinability Good
Magnetic Yes
Dielectric Constant 65 @ Frequency 1000 Hz
Dielectric Strength 1.18 kV/mm

GENERAL INFORMATION:

For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).

HOW TO USE:

1) Carefully clean and dry all surfaces to be bonded.

2) Apply this completely mixed adhesive to the prepared surfaces, and gently press these surfaces together. Contact pressure is adequate for strong, reliable bonds; however, maintain contact until adhesive is completely cured.

3) Some separation of components is common during shipping and storage. For this reason, it is recommended that the contents of the shipping container be thoroughly mixed prior to use.

4) Some ingredients in this formulation provided may crystallize when subjected to low temperature storage. A gentle warming cycle of 52C for 30 minutes prior to mixing components may be necessary. Crystallized epoxy components do not react as well as liquid components and should be re-dissolved prior to use for best results.

AVAILABILITY:

This epoxy can be supplied in various different packages.
