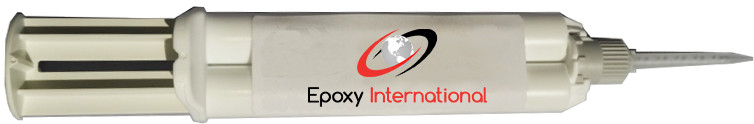

10ml Easy Dispensing System *New*
50ml Dual Cartridge
Dispensing Gun
Mixing Tip

Quantity:

TDS
Product Review
Find Similar Products by Category

Product Description

ELECTRICALLY CONDUCTIVE ADHESIVE FLEXIBLE SILVER EPOXY NON BLEEDING

PRODUCT DESCRIPTION:

Flexible-Silver 17 Flexible Conductive Silver Epoxy Dual Cartridge System is a non-bleeding, electrically conductive, silver-filled epoxy formulation recommended for electronic bonding, coating, and sealing applications that require flexibility coupled with good electrical and mechanical properties.

This two-part, thixotropic adhesive of refined pure silver and epoxy resin components is free of solvents and copper or carbon additives. It develops resilient, electrically and thermally conducting bonds and coatings between many different and dissimilar materials such as metals, ceramics, glass and plastic insulates.

Flexible-Silver 17 Flexible Conductive Silver Epoxy Dual Cartridge System cures at room temperature and can be used as a flexible "cold-solder" for heat-sensitive components where hot-soldering is impractical. It also can be used for the assembly and repair of electrical modules, flexible circuits, membrane switches, wave guides, flat cable and high frequency shields.

GENERAL PROPERTIES

Appearance	Silver
Cure Type	Heat cure and Room temperature
Benefits	Free of solvents and copper or carbon additives Coatings between many different and dissimilar materials
Mix Ratio by weight	100:100 / Resin:Hardener
Substrates	Metal, ceramics, glass and plastic
Thixotropic Index	4.9
Typical Application	Assembly and repair of electrical modules, flexible circuits, membrane switches, wave guides, flat cable and high frequency shields Electronic bonding, coating, and sealing applications Can be used as a flexible "cold-solder"

CURE SCHEDULE

4 hours	@ 65C
24 hours	@ 25C

UNCURED PROPERTIES

Specific Gravity, mixed	2.32 g/cc
Pot Life	30 min
Solid Content	100 %
Volatile Organic Compounds (VOC) Content	24.41 g
Viscosity	995000 cP @ Temperature 25.0 C

MISC PROPERTIES

Shelf life	1 Year
Hardness, Shore D	80
Adhesive Bond Strength Lap shear, alum to alum	90.0 psi in 24 hrs @ 25C 170 psi in 4 hrs @ 65C

ELECTRICAL PROPERTIES

Volume Resistivity	0.00011 ohm-c cured 4 hrs @ 65C 0.0016 ohm-cm cured 24 hrs @ 25C

THERMAL PROPERTIES

CTE, linear	19.4 in/in-F @ Temperature 68.0 F
Thermal Conductivity	11.1 BTU-in/hr-ft-F
Operating Temperature	-60.0 C to 110 C
Glass Transition Temp, Tg	4.00 C, 39.2 F

GENERAL INFORMATION:

For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).

HOW TO USE:

1) Carefully clean and dry all surfaces to be bonded.

2) Apply Flexible-Silver 17 Flexible Conductive Silver Epoxy Dual Cartridge System completely mixed adhesive to the prepared surfaces, and gently press these surfaces together. Contact pressure is adequate for strong, reliable bonds; however, maintain contact until adhesive is completely cured.

3) Some separation of components is common during shipping and storage. For this reason, it is recommended that the contents of the shipping container be thoroughly mixed prior to use.

4) Some ingredients in this formulation provided may crystallize when subjected to low temperature storage. A gentle warming cycle of 52C for 30 minutes prior to mixing components may be necessary. Crystallized epoxy components do not react as well as liquid components and should be re-dissolved prior to use for best results.

AVAILABILITY:

This epoxy can be supplied in various different packages.
